Wood carburetor atmos GS32 - efficient carburetor

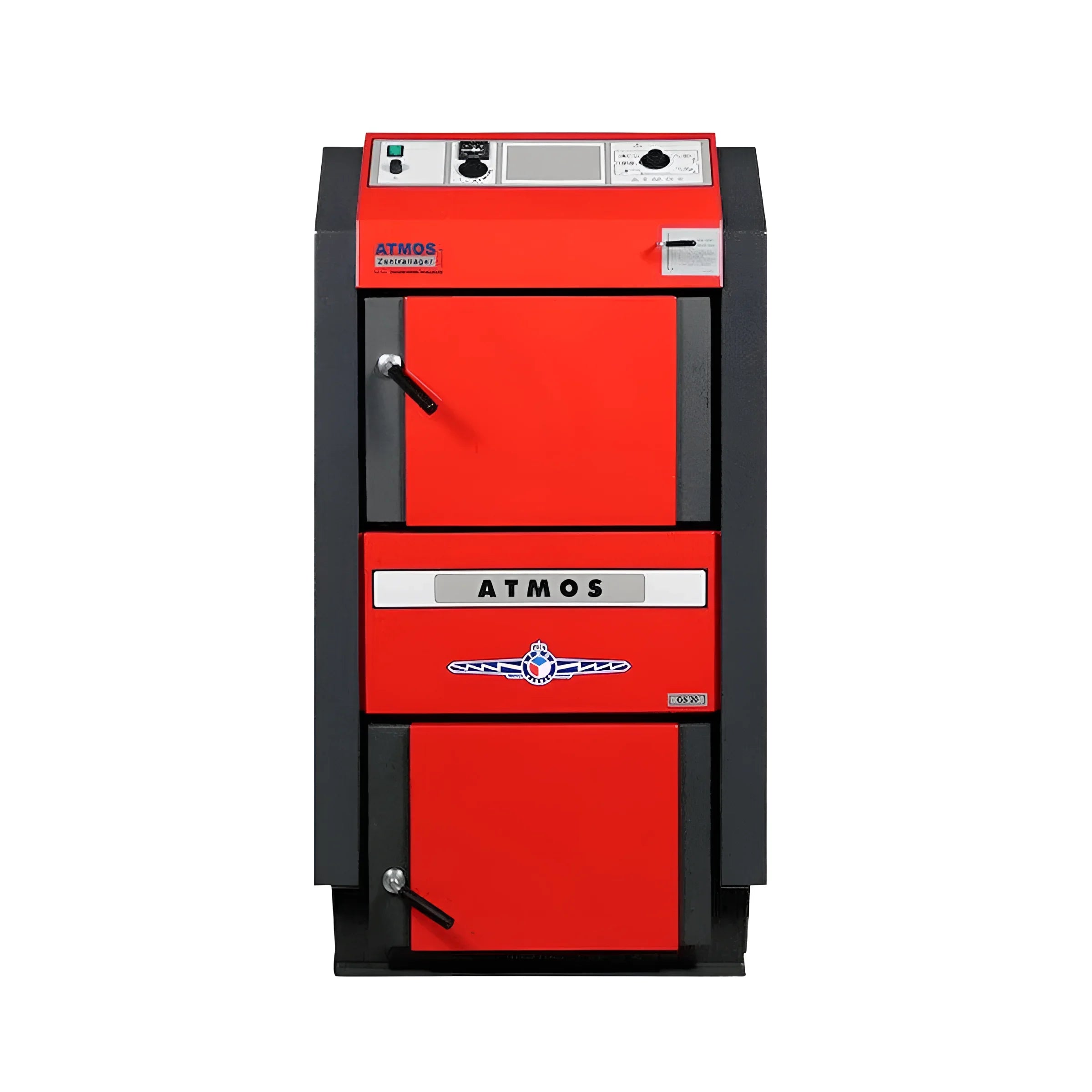

Wood boiler Atmos - GS32

Wood boiler Atmos - GS wood gasifier solid fuel are characterized by high efficiency and achieve an efficiency of up to 87.1%.

The structure of this model is based on the proven ATMOS GSE series However, unlike the GSE series, the GS series does not have an additional flue gas heat exchanger. Furthermore, the ceramic molded parts in the filling and combustion chambers differ in their design. These differences result in a slightly lower efficiency compared to the GSE series. Nevertheless, the Atmos GS wood boiler impresses with its reliable construction and functionality and is now one of the most popular wood gasification boilers in the ATMOS range.

Despite its slightly lower efficiency, the GS remains one of the most popular ATMOS models for efficient and sustainable wood heating.

Advantages: Wood boiler Atmos - GS wood gasifier solid fuel

• Construction made of high-quality boiler steel (6 mm and 8 mm), for a long service life
• Generous filling space that allows easy and convenient filling with logs
• Left-hand door hinge, which can easily be replaced later if necessary
• Robust, replaceable protective lining in the filling and combustion chamber made of durable fireclay ceramic (up to 4 cm thick) for optimal heat protection and improved combustion
• Integrated safety heat exchanger (1/2 inch) for thermal discharge protection to increase operational safety
• Parallel and V-shaped geometry of the filling chamber ensures even combustion and reliably prevents hollow combustion
• Comprehensive thermal insulation through mineral wool insulation ensures minimal heat loss and maximum energy efficiency
• Automatic switch-off after the wood has completely burned increases user-friendliness and safety
• Boiler control panel is already prepared for the use of weather-dependent controls, can be used for several heating circuits as well as for solar circuits
• Certification according to EN303-5 CE-0036 guarantees the highest quality and safety standards

Technical data

• Energy efficiency class: A+
• Boiler class: 5
• Nominal heat output: 32 kW
• Efficiency: 87.1%
• Tension requirement: 24 Pa
• CO content: 179 mg/m³
• Dust emission: 13 mg/m³
• Prescribed fuel: logs
• Maximum firewood length: 530 mm
• Exhaust gas temperature: 225 °C
• Exhaust gas mass flow: 0.018 kg/s
• Height: 1280 mm
• Width: 678 mm
• Depth: 959 mm
• Flue pipe connection: 150/152 mm
• Weight: 408.0 kg

Scope of delivery

• Atmos wood gasifier GS 32 kW
• Detailed assembly and operating instructions

Download

• Operating instructions
• Exploded view
