Copper pipe insulated for air conditioning and boiler accessories

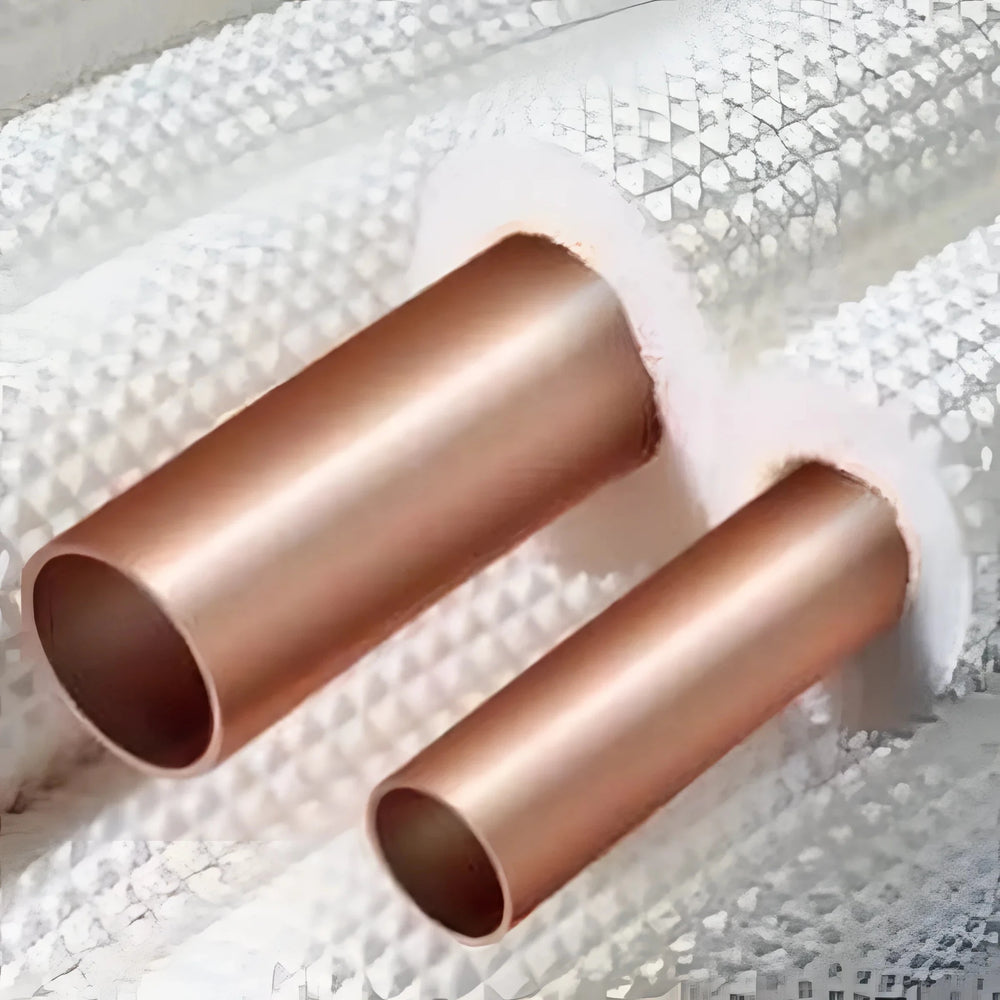

Refrigerant line 1/4" - 3/8" (6.35 mm - 9.53 mm) - pre-insulated

Product description

The pre-insulated refrigerant line meets the highest standards in modern refrigeration technology. It is designed for use with the latest environmentally friendly refrigerants, which are used worldwide in industrial and residential applications.

With its precisely standardized dimensions, this pipe is ideally suited as a central component in refrigeration and air conditioning systems. The use of high-quality copper and advanced insulation materials guarantees optimal performance and durability.

Technical properties of the copper pipe

The copper tubes are manufactured from deoxidized copper (Cu-DHP) with a copper content of at least 99.90%. The residual phosphorus content is deliberately limited to a value between 0.015% and 0.040%. This choice of material ensures outstanding corrosion resistance and performance.

The dimensions and wall thicknesses are standardized: For outer diameters from 1/4" to 1/2", a wall thickness of 0.80 mm is achieved, and for larger diameters from 5/8" to 3/4", a thickness of 1.00 mm is used. This ensures optimal fulfillment of the requirements of current refrigeration and air conditioning technology.

Mechanical properties

The copper pipe has a soft hardness and is classified as R-220 according to EN 12735. With a minimum tensile strength of 220 MPa and an elongation at break of at least 40%, it offers excellent mechanical flexibility and stability.

These features enable easy handling during assembly and safe operation, even in demanding installations and changing environmental conditions.

Insulation and material quality

The high-quality pre-insulation consists of a PE-X foam with a density of 30-33 kg/m³. This insulating foam not only offers a low thermal conductivity of 0.039 W/mK, but also provides an effective thermal barrier.

With a water vapor permeability resistance of over 9000 according to ISO 12572, the material offers excellent resistance to moisture and thus ensures consistent performance over a wide temperature range from -80°C to 110°C.

Certifications and quality inspections

The refrigerant line complies with specification EN 12735-1 and has been tested by renowned testing laboratories such as AENOR, TÜV, GL and VIK. These certification marks underscore the quality and safety of the product.

The comprehensive certifications guarantee that the system meets the strict requirements of international standards in refrigeration and air conditioning technology and ensures reliable operation in a wide variety of applications.

Scope of delivery

• 1 roll = 25 meters
