Double thermal drain protection for boilers and stoves
SKU: TAS2
Manufacturer Information
Name: CALEFFI S.p.a.
Address: S.R. 229, n. 25, 28010 Fontaneto d'Agogna (NO) Italy
Email: info@caleffi.com
Website: https://www.caleffi.com/de-de
European Manufacturer: Yes
Lieferzeit Deutschland
Paket 1 - 3 Tage
Spedition 3 - 5 Tage
Lieferzeit Europa
Paket 3 - 5 Tage
Spedition 5 - 7 Tage
Garantiert sicherer Checkout

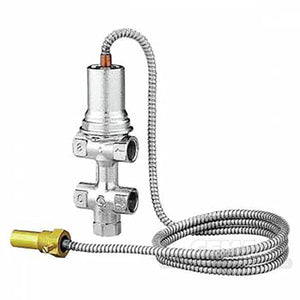

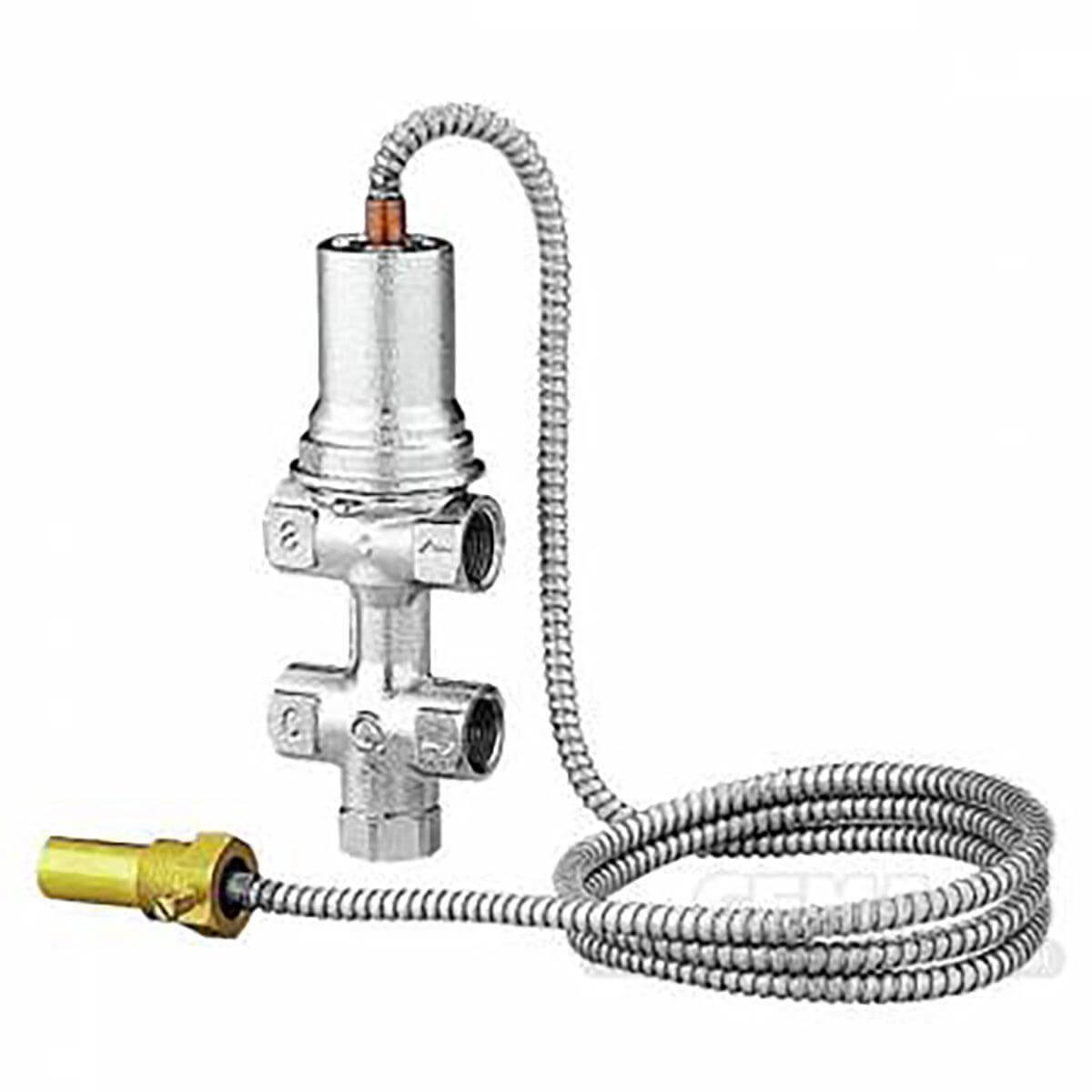

Double thermal drain protection for boilers and stoves
Caleffi double thermal discharge safety device ½" opens at 90-100°C
Double thermal discharge safety device with built-in water refill for fireplace stoves and boilers with water tank

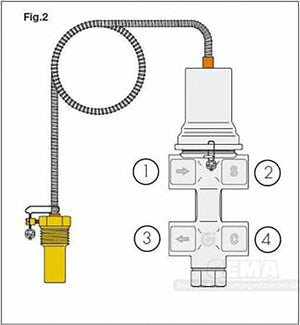

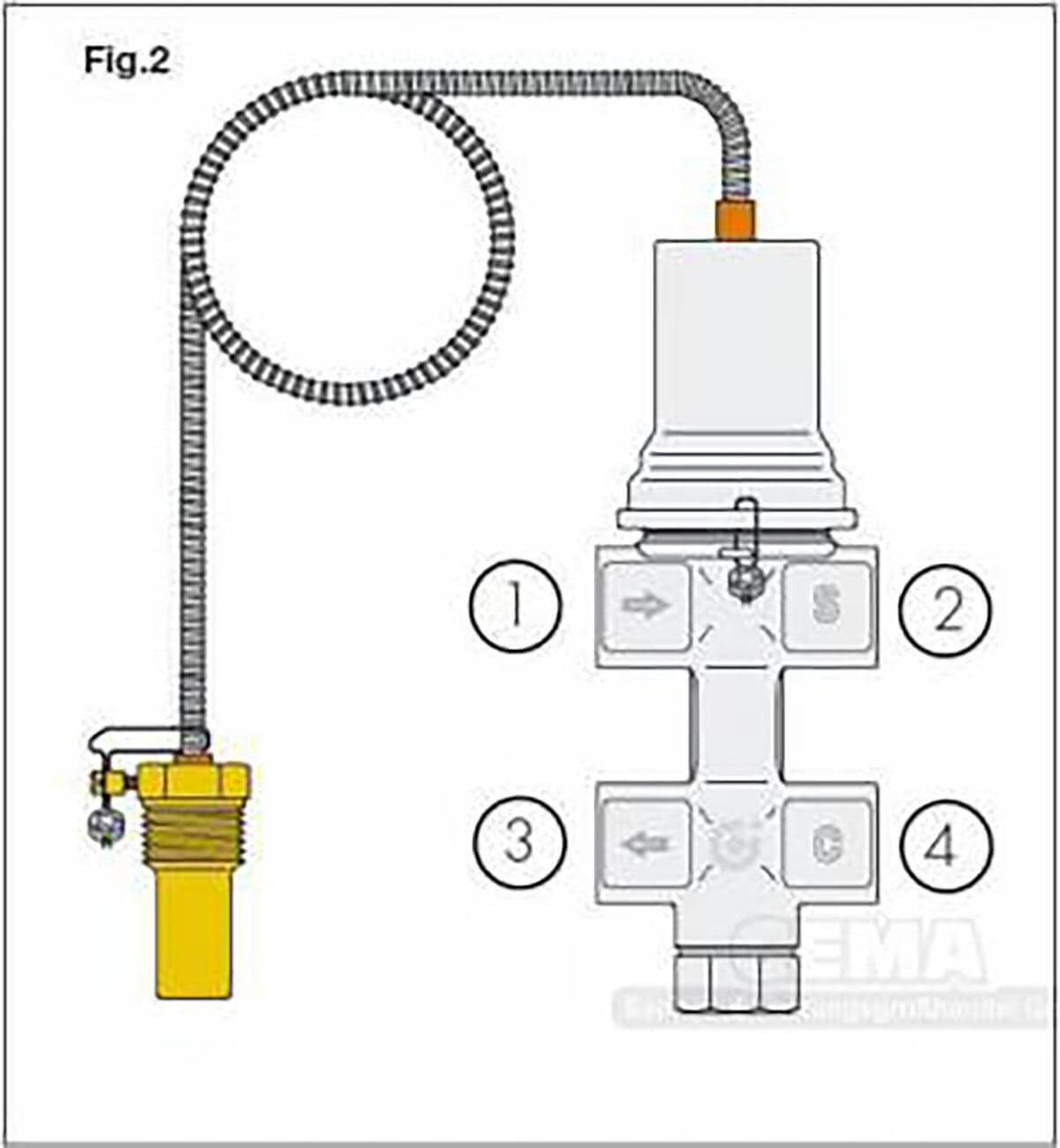

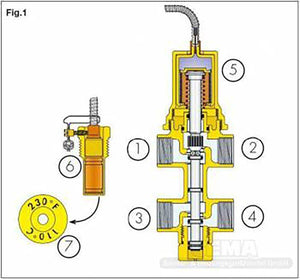

The double thermal discharge safety device is used as a safety device in heating systems with solid fuel boilers. The device combines a thermal discharge safety device and a filling valve in a single block, which are activated simultaneously with positive safety when controlled by a remote sensor.

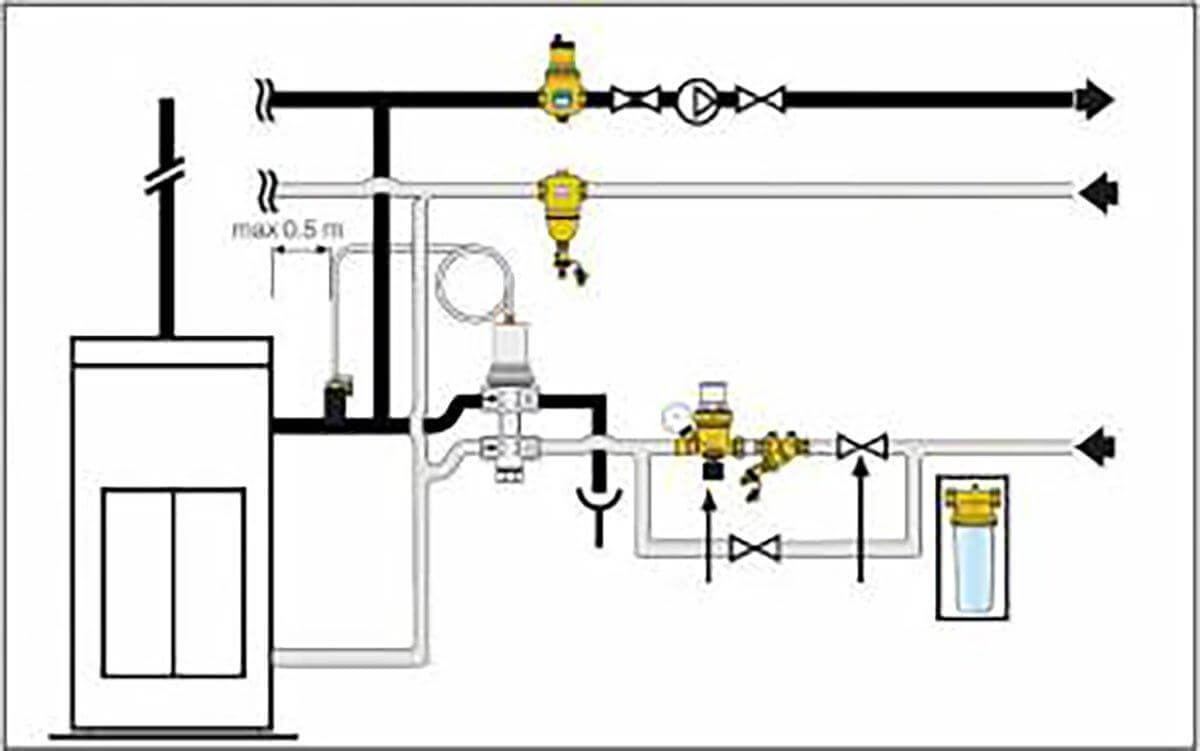

When the valve is activated, the built-in water refill system reacts to the water circulation during the combustion of the remaining fuel, thus protecting your boiler and heating system.
Technical data:
- Connections: ½" IG
- Connection immersion sleeve: ½" AG
- Length of capillary tube: 1300 mm
- Operating medium: water, glycol solutions
- Max. glycol content: 30%
- Max. operating pressure: 6 bar
- Setting temperature: 100 °C (+0°C/-5°C)
- Operating temperature range: 5 - 110 °C
- Ambient temperature range: 1 - 50 °C
- Drainage capacity at Δp = 1 bar: 1600l/h
- Housing: Brass EN 12165 CW617N, chrome-plated
- Immersion sleeve: brass EN 12164 CW614N
- Spring: Steel EN 10270-1
- Seals: EPDM
*Technical changes reserved | Images may vary
