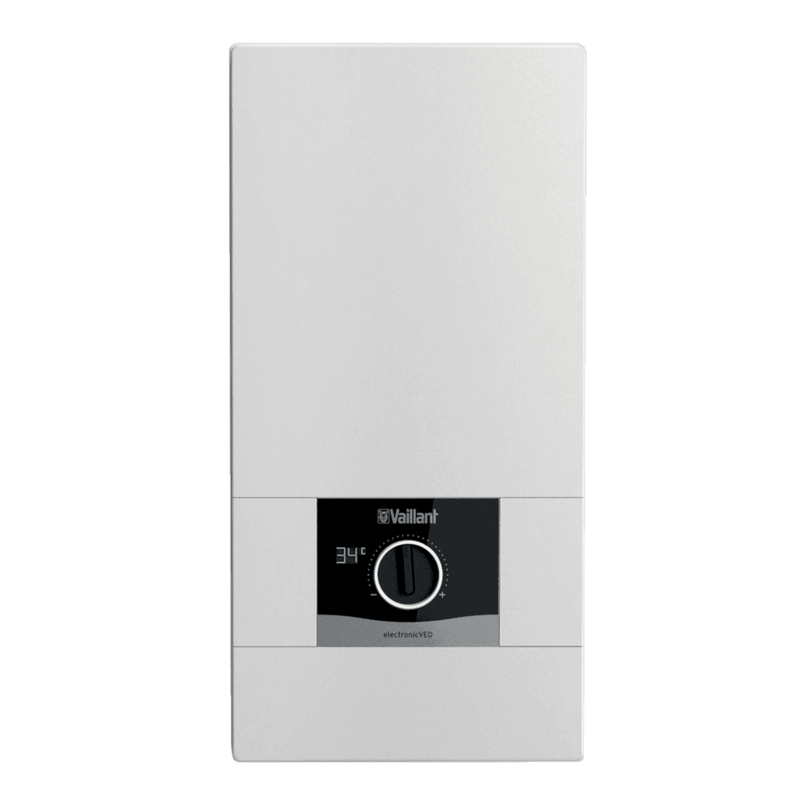

Vaillant electronic instantaneous water heater VED
Vaillant electric instantaneous water heater
Whether in the bathroom or kitchen, in a detached house or on an apartment floor: Our electronicVED These units are suitable for almost any application and can supply one or more taps with hot water simultaneously. Heating the water directly at the tap eliminates storage tank and circulation line losses, and the short pipe runs minimize heat loss. This also improves drinking water hygiene. Furthermore, with a depth of only 99 mm, they are exceptionally space-saving and fit even in the smallest niche.
Simplest operation of the Vaillant electronic instantaneous water heater VED
Setting the temperature on the electronicVED and electronicVED pro units couldn't be simpler: both product lines use a convenient rotary knob. With the electronicVED, the desired temperature can be set continuously and precisely – and thanks to the new digital temperature display, it can also be read directly. The electronicVED pro offers a choice of three preset temperature levels: 35°C, 45°C, or 55°C – which can be further adjusted by adding cold water.
Installation made easy

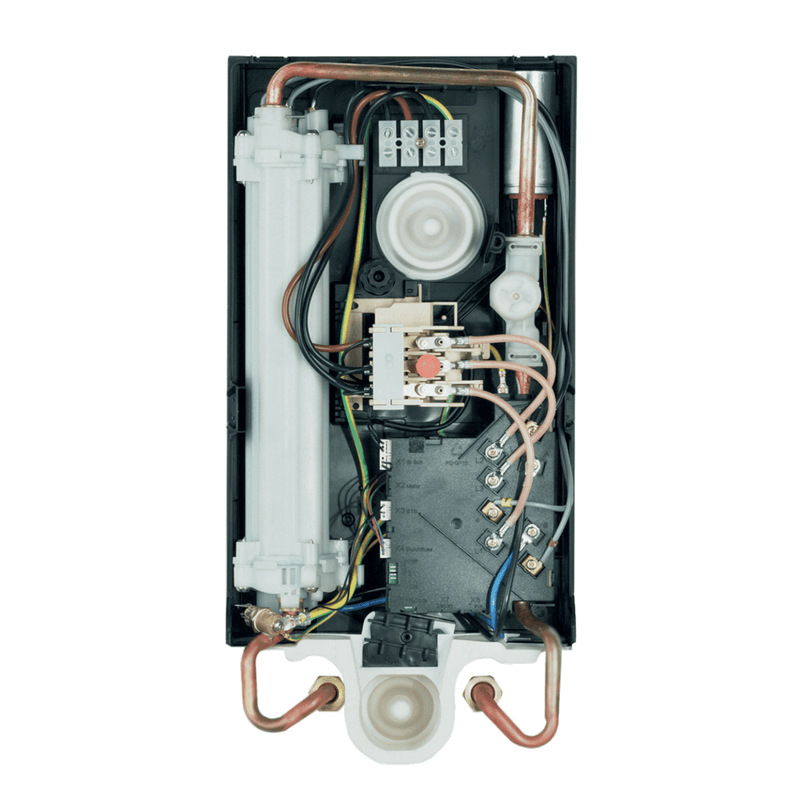

Thanks to our Pro-I installation system, all electronicVED Devices are installed in no time. The integrated hinged frame provides easy access to the connection fitting, the included inlet shut-off valve facilitates easy maintenance, and the rotating cover ensures convenient operation during under-counter installation. Furthermore, all electronicVED units are compatible with all other manufacturers' devices: thanks to the universal mounting plate, older units can be easily replaced. The plug-in component design allows for easy disassembly – all components are, of course, made from recyclable materials.
Ideal for bartering
Thanks to their high efficiency, our electronic instantaneous water heaters are ideal for modernization projects: Replacing hydraulically controlled units with them can save up to 30% on energy and water costs. This is because the outlet temperature of our electronicVED units can be precisely preset.
- Continuously adjustable temperature controller
- 7-segment temperature display
- Electronic power control
- PRO I installation system for maximum ease of assembly: variable electrical connection, hinged frame at the bottom
- Suitable for plastic pipe systems according to DIN 1988 and DIN 16892/16893
- IP 25 D jet water protection allows unrestricted installation in protection zone 1.
- UV-resistant device cover (no yellowing due to UV radiation)
- Hot water comfort: constant, continuously adjustable Outlet temperature from 30 °C to 55 °C up to the performance limit
- 7-segment temperature display for precise temperature preselection
- Energy and water savings of up to 30% compared to hydraulic instantaneous water heaters
- Easy and quick maintenance thanks to good accessibility of easily replaceable components.
- Automatic air bubble detection in all electronic devices
- Adjustable scald protection
Technical data: Electric instantaneous water heater electronic VED
| Technical data | Unit | VED E 18/8 | VED E 21/8 | VED E 24/8 | VED E 27/8 |
| Heating output | kW | 18 | 21 | 24 | 27 |
| Performance regulation | | Electronically controlled | Electronically controlled | Electronically controlled | Electronically controlled |
| Continuous hot water output Δt 30K | l/min | 8 | 8 | 8 | 10 |
| Tension | | 400V/50Hz | 400V/50Hz | 400V/50Hz | 400V/50Hz |
| Electrical connection | | Cable | Cable | Cable | Cable |
| Protection class | | IP25 | IP25 | IP25 | IP25 |
| Hot water temperature (Min - Max) | °C | 30 - 55 | 30 - 55 | 30 - 55 | 30 - 55 |
| Maximum inlet temperature | °C | 55 | 55 | 55 | 25 |
| Product dimensions (height/width/depth) | mm | 481/240/99 | 481/240/99 | 481/240/99 | 481/240/99 |
| Product weight | kg | 4.4 | 4.4 | 4.4 | 4.4 |
- 1 electric instantaneous water heater electronic VED
- 1 cold water connection piece R 1/2 with cold water shut-off valve
- 1 Hot water connection piece R 1/2
- 1 mounting plate
- 1 mounting template
- 1 Mounting material
- 1 Operating and Installation Instructions
- 1 Product data sheet, energy efficiency label
