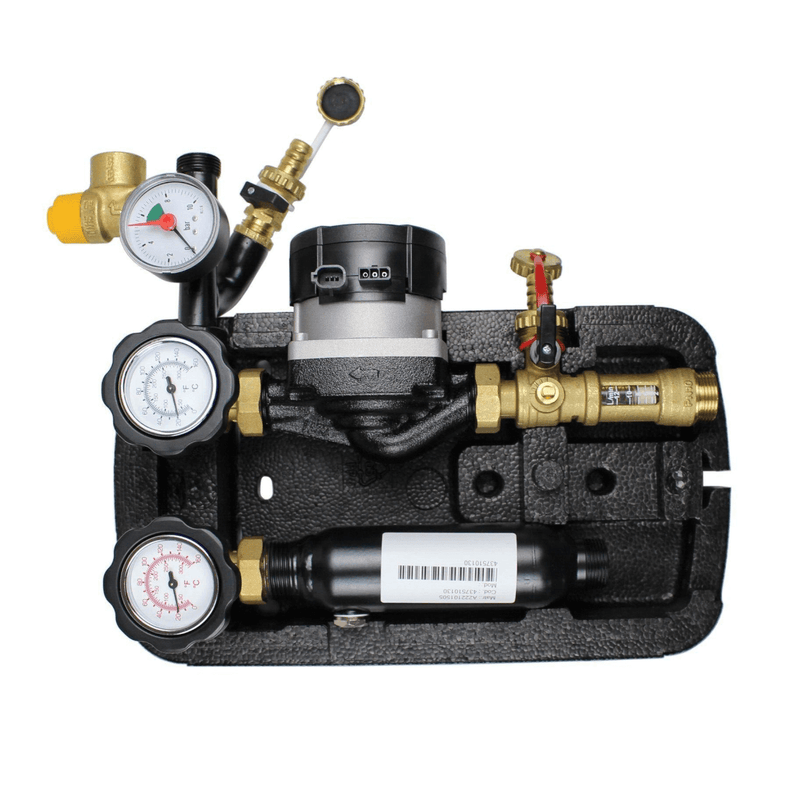

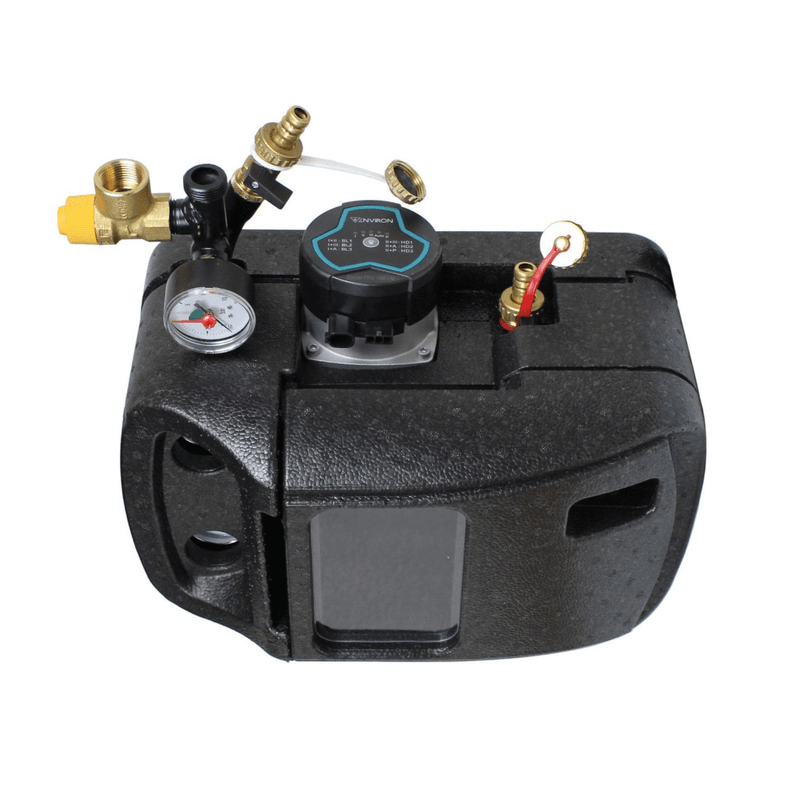

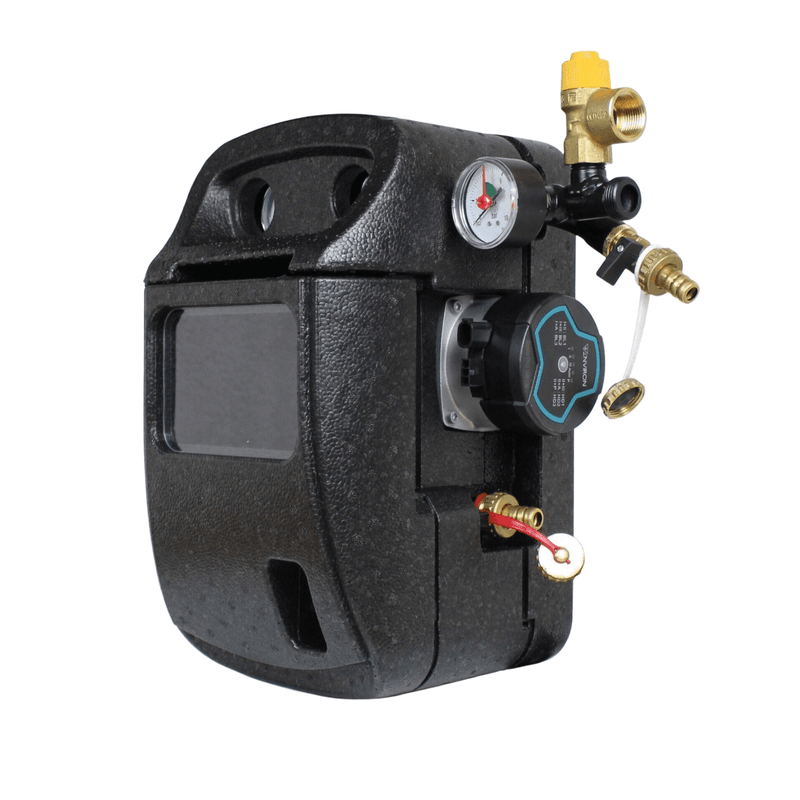

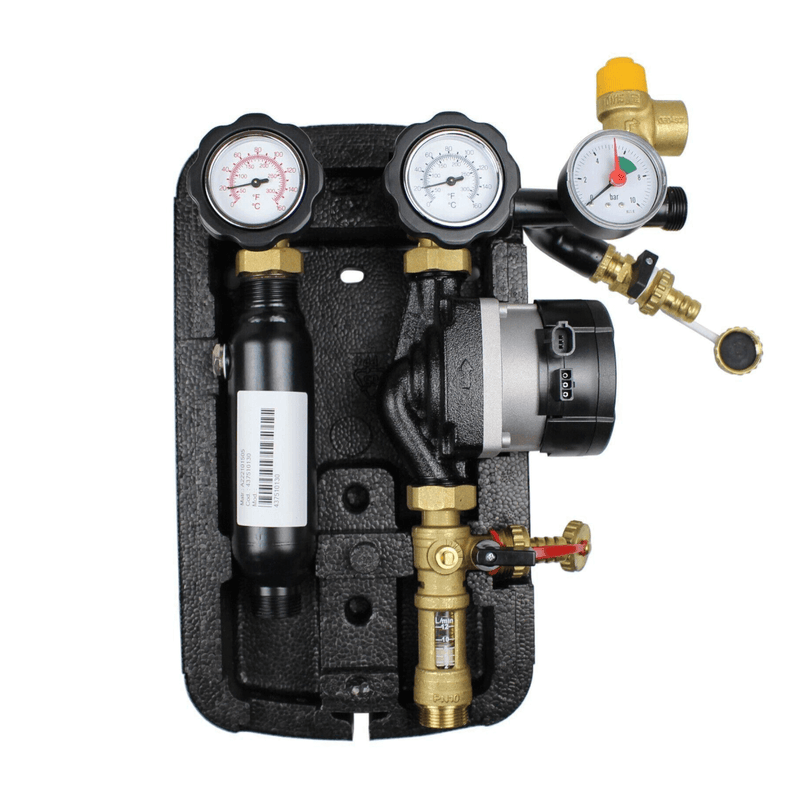

Product description: Solar station pump group

Product overview

The pre-assembled, compact two-string solar station offers an innovative solution for the efficient operation of circulation pumps. Equipped with the high-quality Environ EcoStar Pro Solar 15/6 high-efficiency pump, this system is ideally suited to reliably handle even demanding applications.

The entire assembly is ready for connection and particularly user-friendly thanks to its careful pre-assembly. With its integrated EPS thermal insulation shell, it is one of the modern, low-maintenance systems that meet the needs of a wide variety of applications.

Performance features

Equipped with a flow regulator covering a range of 2 to 12 l/min, the solar station enables precise, demand-based operation. This allows the system to be optimally adjusted to variable hydraulic requirements.

The design also includes a flexible connection for the expansion vessel, while the integrated solar safety valve and pressure gauge ensure safe and continuous operation. The side opening further promotes effective pump cooling, which is particularly advantageous during continuous operation.

Innovative technology and comfort

The solar station impresses with its innovative features, such as the ability to charge, drain, and clean the circulation pump without having to drain the entire system. Integrated air vents in the supply line ensure trouble-free air release, further supporting smooth operation.

High-quality shut-off valves with integrated gravity brakes and thermometers provide precise control and monitoring functions. These convenient solutions simplify plant operation and allow for quick adaptation to specific requirements.

Technical details and materials

Only robust materials and innovative technologies are used in the manufacturing process. The insulation consists of black EPP with a density of 40 g/l, which guarantees a secure, flat-sealing surface and durable seals. This ensures a high level of protection against weathering and temperature fluctuations.

The flanged ball valves, each equipped with a thermometer, contribute to precise monitoring of the system temperature. The sophisticated design and high-quality components make this solar station a reliable choice for demanding applications.

Installation and connection

The solar station was designed to be as ready for connection as possible, allowing for easy integration into existing systems. With the flexible connection for the expansion vessel and the option for wall-mounted storage, a wide variety of installation scenarios can be implemented.

The pre-assembled design significantly reduces installation effort. This enables rapid operation, while the insulation-ready construction also ensures effective protection against temperature fluctuations.

Technical data
