Heating element heating cartridge 4.5 kW AG 1 ½” suitable for emergency heating PV

by Gema GmbH

170,92 € - 170,92 €

170,92 €

170,92 € - 170,92 €

170,92 €

Availability:

in stock, ready to be shipped

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

Technische Beratung für Heiztechnik & Systemkomponenten
Sichere Zahlung
Paket- oder Speditionsversand je nach Produktart

Description

Heating element, heating cartridge 4.5 kW AG 1½" – Powerful emergency heating

Product description

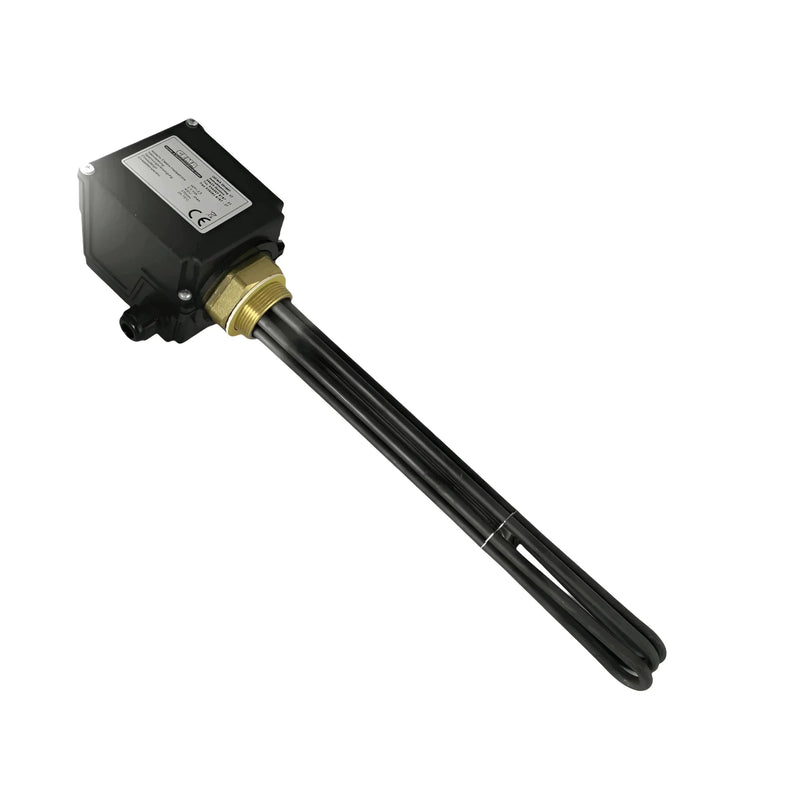

The 4.5 kW heating element (1.5" male thread) is an efficient emergency heating solution for buffer tanks, domestic hot water tanks, and solar storage tanks. Thanks to its robust design, it is suitable for continuous operation and ensures consistent heat output.

High-performance heating technology

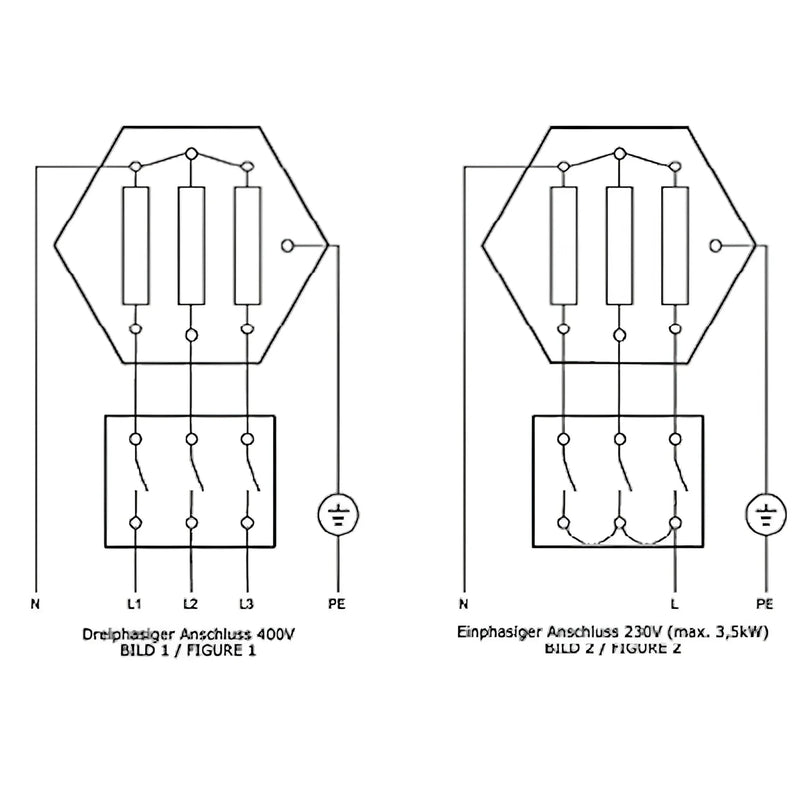

With a power output of 4,500 W and an operating voltage of 3-400 V, this heating cartridge heats your storage tanks quickly and reliably. Its installation length of 450 mm and unheated zone of approximately 120 mm allow for use in enamelled tanks and steel-walled storage tanks.

Regulation and security

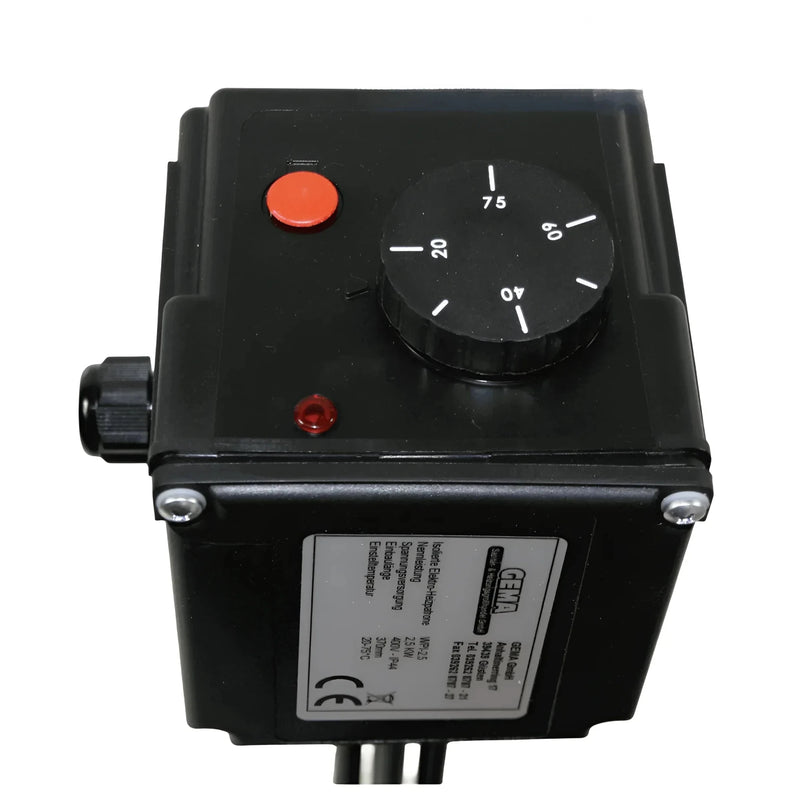

The continuously adjustable thermostat (30–75 °C) offers precise temperature control for various applications. An integrated safety thermostat (STB) reliably switches off at 98 °C and protects your system from overheating.

Material and protection

The Incoloy825 (material 2.4858) pipe jacket ensures excellent corrosion resistance. Insulation prevents galvanic reactions, while the ABS plastic housing and brass screw head provide additional protection. IP54 protection ensures safety in damp environments.

Application areas

Ideally suited for use in PV batteries, solar storage tanks, buffer tanks, and domestic hot water tanks. Thanks to the high-quality materials, the heating element can also be operated in enamelled and steel-walled storage tanks without risking corrosion damage.

Technical data

Power: 4,500 watts
Voltage: 400V
Application: enamelled containers
Unheated length: 120 mm
Installation length: 470 mm
Protection rating: IP54
Maximum operating pressure: 10 bar
Temperature control: 30 - 75 °C
Safety temperature limiter: 98 °C
Connection: 1 1/2" AG

Scope of delivery

1 x heating element 4.5 kW
1 x flat gasket
Assembly & User manual
