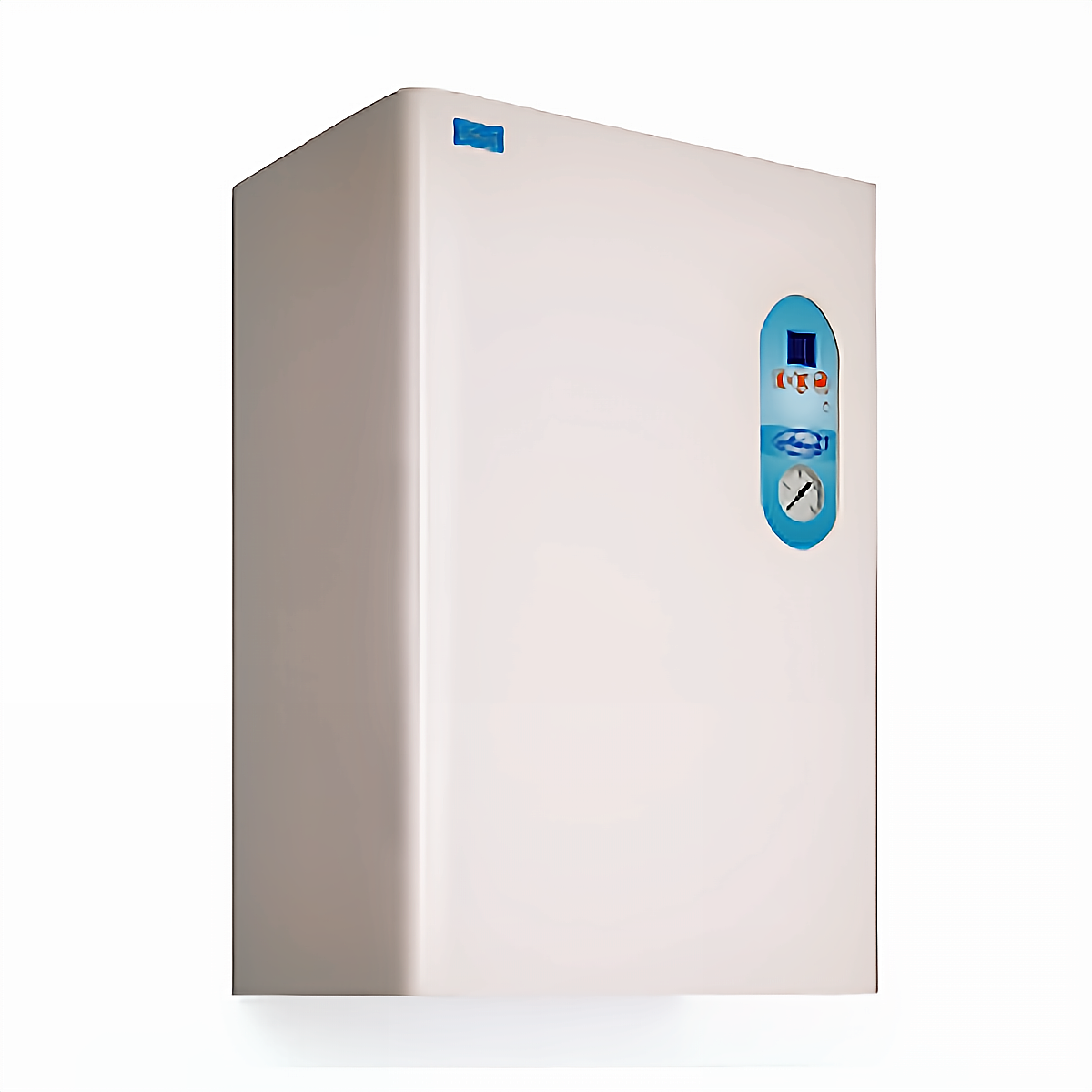

ATTACK Electric Easy Electric Boiler – Efficient and Compact Heating Solution
Electric boiler and its functions

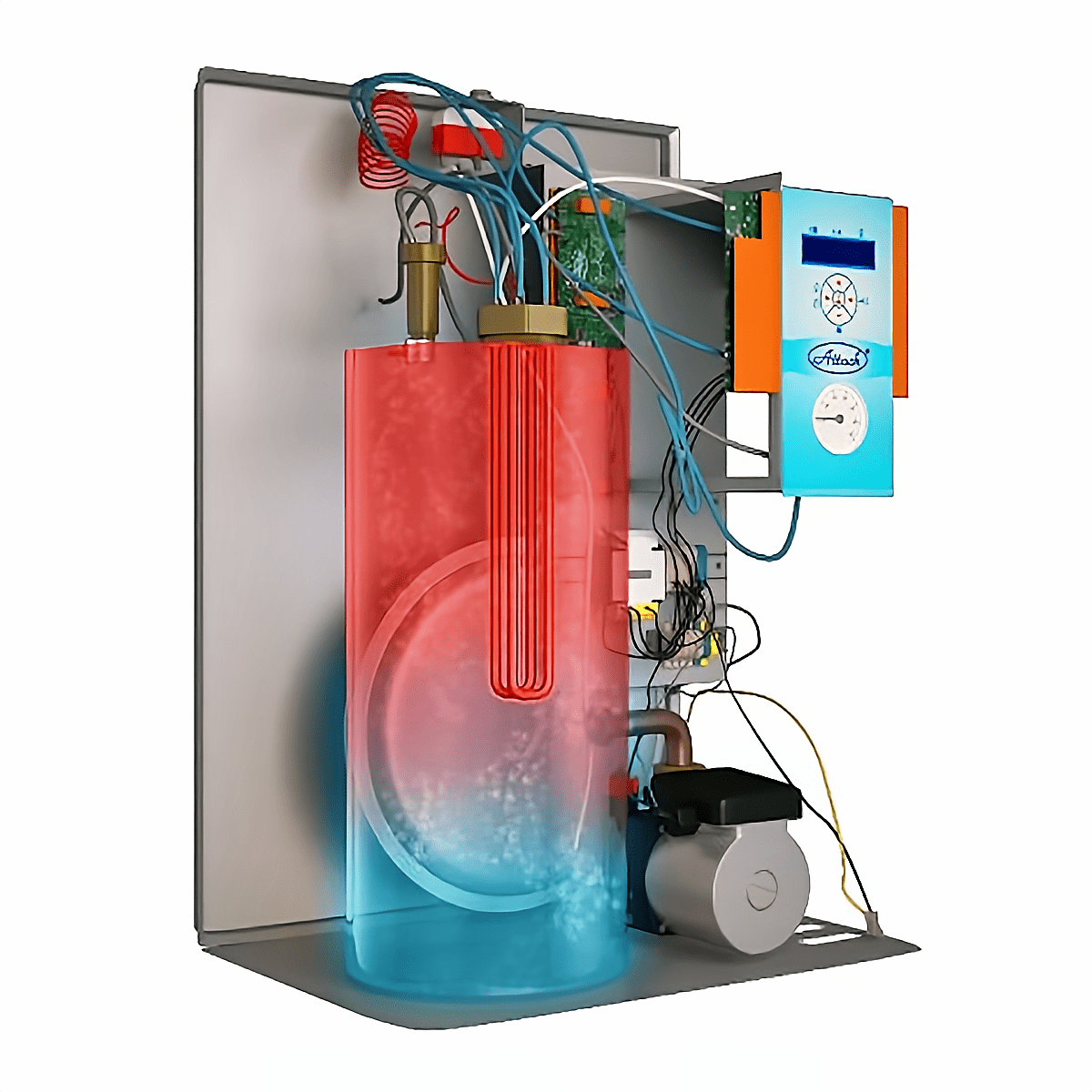

The ATTACK Electric Easy combines a compact design with a wide range of protection and comfort features. An integrated automatic venting system ensures optimal operating conditions without manual intervention. Additional safety mechanisms protect against frost damage, overheating, and pressure loss, guaranteeing trouble-free operation.
With just one additional storage tank, the unit can easily be used for domestic hot water preparation. This allows you to combine heating and hot water preparation in a single system, saving space and installation effort.
Electric boiler and simple operation

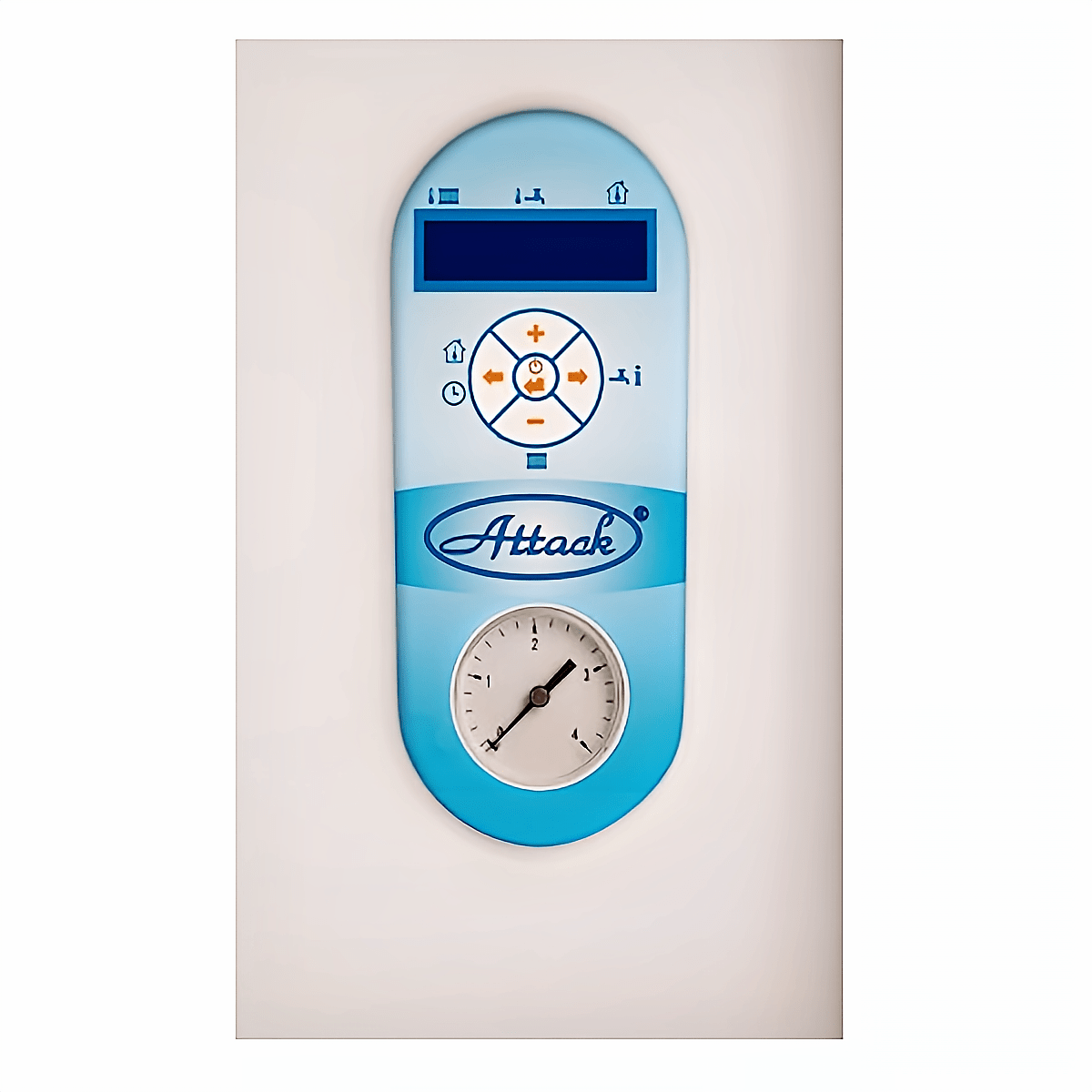

Operating the Electric Easy is self-explanatory thanks to the large LCD display, which clearly shows all relevant information and any fault messages that occur. Complex settings become child's play thanks to the intuitive menu navigation.
For even more comfort, the heating center can be controlled via smartphone in addition to the integrated room thermostat. The precise PID control optimizes the heating process, minimizes temperature fluctuations, and thus reduces energy consumption – while simultaneously extending the boiler's service life.
Reliable eco-friendly boiler
The ATTACK Electric Easy operates emission-free and scores with almost silent operation. Thanks to carefully selected materials and environmentally friendly technology, it is particularly suitable for buildings where fossil fuels are to be or can be avoided.
Combination with solar system
Particularly in combination with a solar system, the Electric Easy plays to its strengths. A well-dimensioned solar thermal system can cover up to 70% of the hot water demand over the course of the year. During periods with little sunshine, the electric boiler seamlessly and energy-efficiently takes over the remaining heating.
Technical data
- Nominal heat output 7.5 kW
- Rated current 3 x 12 A / 1 x 36 A
- Degree of protection IP40
- Supply voltage 3 x 230/400 V +N + PE /50 Hz (1 x 230 V + N + PE/50 Hz)
- Max. rated current 3 x 12 A / 1 x 40 A
- Main switch of the installation 3 x 16 A / 1 x 40 A
- Rated current of the control fuse 0.315 A
- Relay - electrical life 250,000 cycles, 16 A, 250 V
- Connection supply & return 3/4" male thread
- Min. operating pressure 0.4 bar
- Max. operating pressure 3 bar
- Max. operating temperature 80 °C
- Water content 5.8 liters
- Efficiency 99 %
- Boiler weight 19 kg
- Dimensions (H x W x D) 625 x 370 x 225 mm
Scope of delivery
- Electric boiler Attack Electric Easy 8 kW
- Installation and operating instructions
