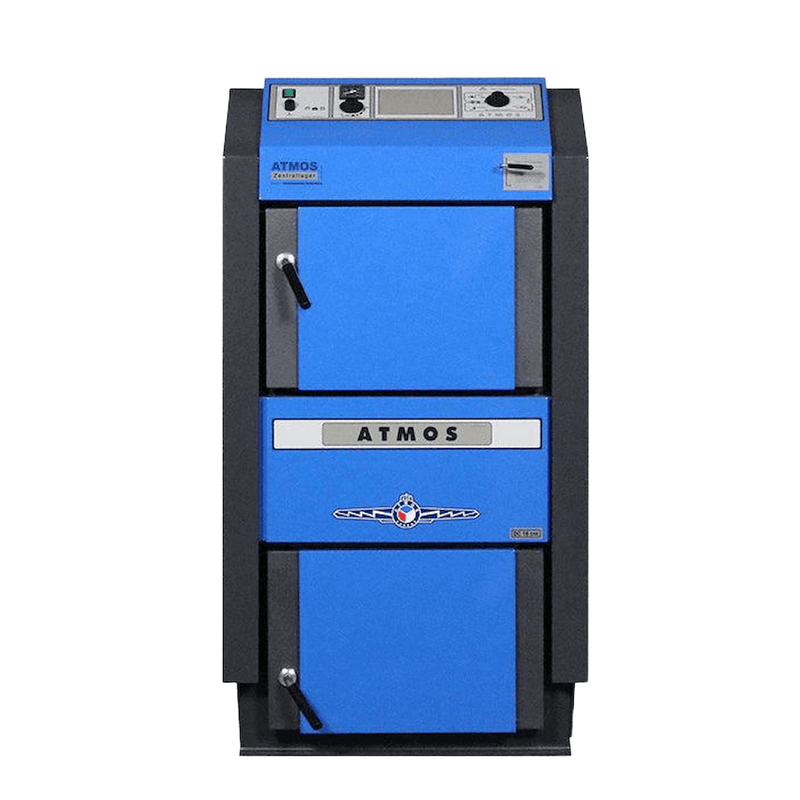

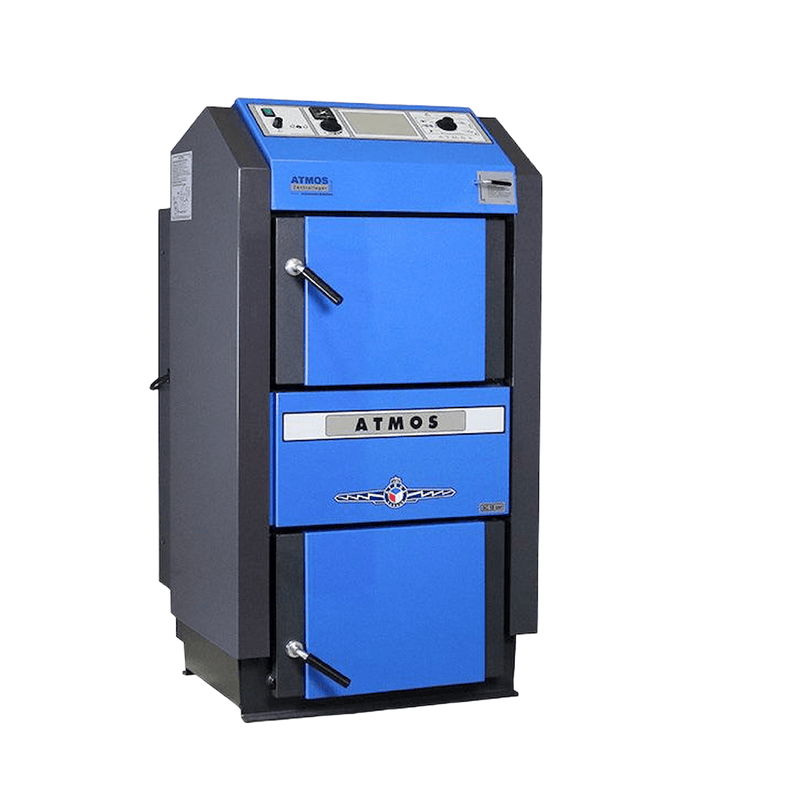

ATMOS DC40GSE wood gasification boiler 40 kW
The ATMOS DC40GSE wood gasification boiler This is a high-performance solid fuel boiler for the efficient combustion of logs. With a nominal heat output of 40 kW, this model is particularly suitable for larger single-family homes, apartment buildings, or commercial heating systems.
Thanks to modern wood gasification technology, the fuel is used particularly efficiently. The ATMOS DC40GSE achieves high efficiency levels and meets the requirements of BImSchV Level II. The energy efficiency class is A+. :contentReference[oaicite:3]{index=3}
Highlights/Advantages
- ⭐ Wood gasification boiler with 40 kW output for large heating systems
- ⭐ Efficiency up to 90.5% for efficient wood combustion
- ⭐ Energy efficiency class A+ according to the EU energy label
- ⭐ Suitable for firewood up to 530 mm in length
- ⭐ meets the requirements of the Federal Immission Control Ordinance (BImSchV) Level II
Area of application & Target audience
The ATMOS DC40GSE is a manually fed wood gasification boiler for high-performance log heating systems.
Typical areas of application:
- large detached houses
- Apartment buildings
- Renovation of existing wood heating systems
- New buildings with renewable heating technology
- Heating systems with buffer storage
The installation should be carried out by a qualified plumbing, heating, and air conditioning (PHVAC) specialist.
Everyday benefits
Wood gasification boilers utilize the energy of the fuel particularly efficiently. In the ATMOS DC40GSE, the wood is first gasified and then completely combusted.
This technology provides:
- high energy yield from firewood
- reduced emissions
- consistent heat output
- economical heating operation
The large filling chamber allows for convenient refilling of logs and supports long heating intervals.
Technology & equipment
The wood gasification boiler is equipped with an induced draft fan that stabilizes the combustion process and supports the chimney draft.

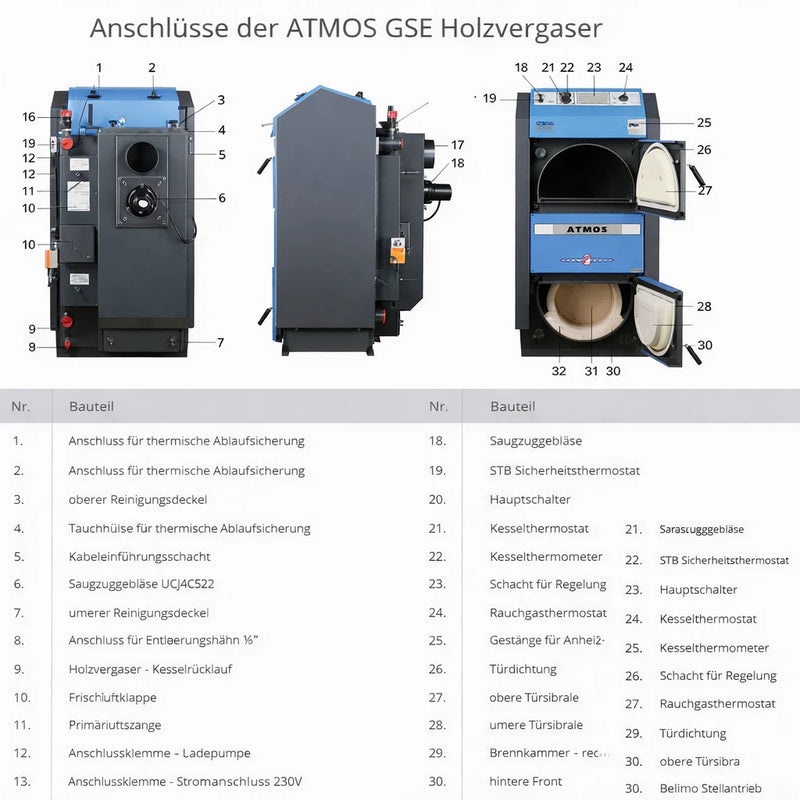

The most important technical components include:
- Induced draft fan
- boiler thermostat
- Safety thermostat (STB)
- flue gas thermostat
- Belimo actuator
- thermal safety device
The operation uses dry firewood with a moisture content of approximately 12–20%.
Efficiency & Environment
Wood gasification technology ensures efficient use of the fuel while simultaneously reducing emissions.
- Energy efficiency class: A+
- Boiler efficiency: up to 90.5%
- Complies with BImSchV Level II
compatibility & System integration
Wood gasification boilers are typically combined with buffer storage tanks. This allows the generated heat to be stored efficiently and distributed throughout the heating system.
Typical combinations:
- Buffer storage
- Return flow increase
- radiator heating
- Underfloor heating
- thermal solar systems
Technical data
| Manufacturer | ATMOS |
| Model | DC40GSE |
| Product type | Wood gasification boiler/solid fuel boiler |
| Nominal heat output | 40 kW |
| efficiency | 90.5% |
| Energy efficiency class | A+ |
| fuel | firewood |
| Max. log length | 530 mm |
| Max. operating pressure | 2.5 bar |
| Recommended return temperature | at least 65 °C |
| Exhaust connection | 150 mm |

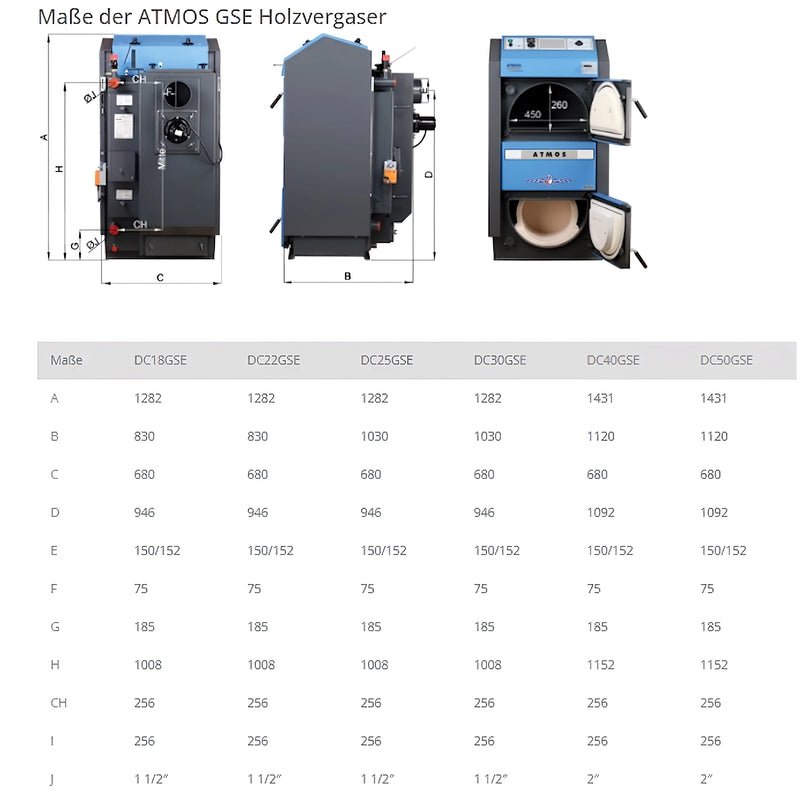

| Height | 1431 mm |
| Width | 680 mm |
| depth | 1120 mm |
| Connection voltage | 230 V/50 Hz |
| sound level | Not specified in the data sheet |
Scope of delivery
- ATMOS DC40GSE wood gasification boiler
- Induced draft fan
- integrated thermostats and safety devices
- Cleaning covers and maintenance components
Accesories & System recommendation
For efficient operation, the manufacturer recommends additional system components.
Suitable system components
Assembly and safety instructions
Installation must be carried out by a qualified heating contractor. Suitable safety valves and proper hydraulic integration are required for safe operation.
The minimum return temperature of 65 °C must be maintained.
FAQ
What is the power output of the ATMOS DC40GSE?
The wood gasification boiler has a nominal heat output of 40 kW.
What type of fuel is used?
The ATMOS DC40GSE is operated with firewood. Dry wood with approximately 12–20% residual moisture is recommended.
How long can the logs be?
According to the manufacturer, the maximum log length is 530 mm.
What energy efficiency class does the boiler have?
The wood gasification boiler has an energy efficiency rating of A+.
Does the boiler meet legal emission standards?
Yes, the ATMOS DC40GSE meets the requirements of the BImSchV Stage II.
Is a buffer storage tank required?
Wood gasification boilers are usually operated with a buffer storage tank to efficiently store the generated heat.
