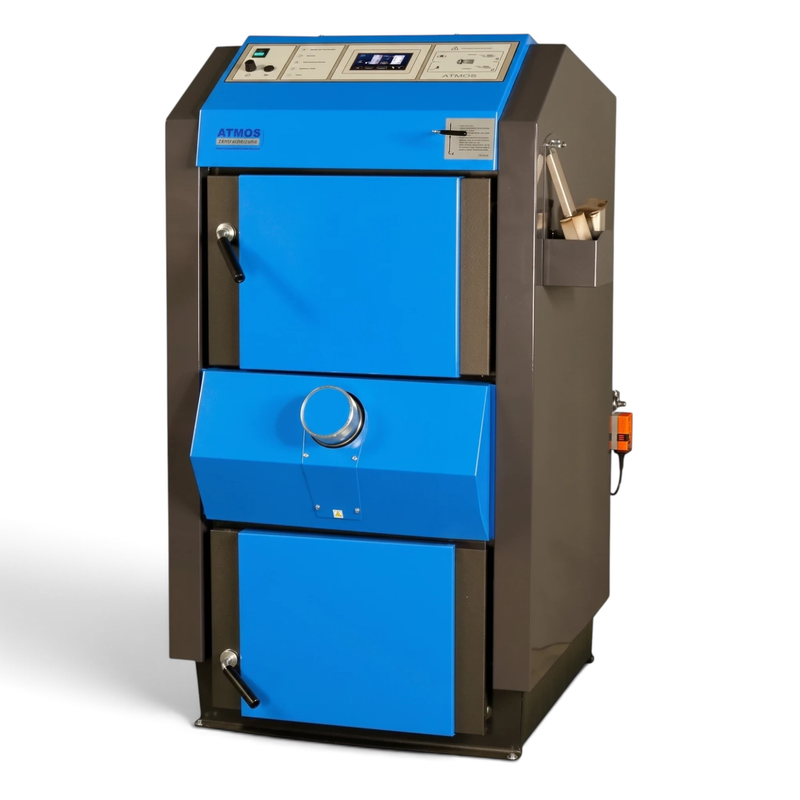

ATMOS DC22GSE wood gasification boiler 23 kW
The ATMOS DC22GSE wood gasification boiler is a modern solid fuel boiler for the efficient combustion of split logs. With a nominal heat output of 23 kW, the model is particularly suitable for single-family homes and medium-sized heating systems.
Thanks to modern wood gasification technology, the boiler achieves high efficiency levels with simultaneously low emissions. The ATMOS DC22GSE meets the requirements of BImSchV Stage II and achieves energy efficiency class A+.
Highlights / Advantages
- ⭐ Wood gasification boiler with 23 kW output for single-family homes
- ⭐ Efficiency up to 91.8% for efficient wood combustion
- ⭐ Energy efficiency class A+ according to EU energy labeling
- ⭐ Suitable for log wood up to 330 mm in length
- ⭐ Meets the requirements of BImSchV Stage II
Application Area & Target Group
The ATMOS DC22GSE is a manually fed wood gasification boiler for efficient log wood heating systems.
Typical application areas:
- Heating systems in single-family homes
- Renovation of existing wood heating systems
- New buildings with renewable heating technology
- Heating systems with buffer tanks
- Heating systems with radiators or underfloor heating
The boiler is designed for use in modern heating systems and should be installed by a qualified heating and sanitary contractor.
Everyday benefits
Wood gasification boilers use the energy of the fuel particularly efficiently. In the ATMOS DC22GSE, the wood is first gasified and then completely burned at high temperatures.
This technology enables:
- high energy utilization of the fuel
- reduced emissions
- uniform heat output
- economical heating operation

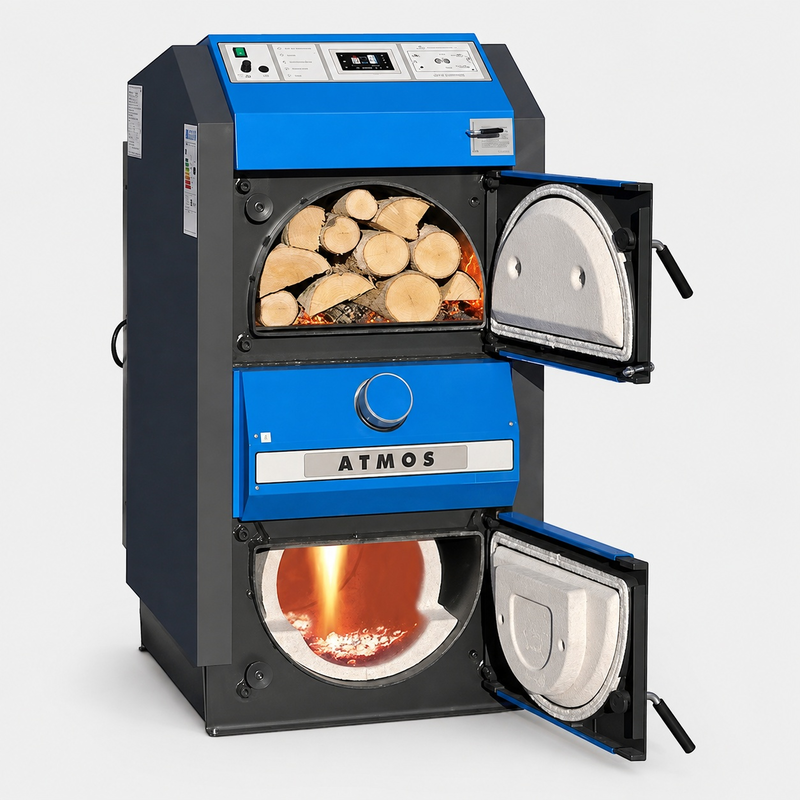

The generous combustion chamber allows for comfortable refilling of firewood and supports longer heating intervals.
Technology & Equipment
The wood gasification boiler features an induced draft fan to support the combustion process and stabilize the chimney draft.
The key technical components include:
- Induced draft fan
- Boiler thermostat
- Safety thermostat (STB)
- Flue gas thermostat
- Belimo actuator
- Thermal drain safety
Dry split logs with a moisture content of about 12–20 % are used as fuel.
Efficiency & Environment
Thanks to wood gasification technology, the ATMOS DC22GSE achieves high energy efficiency while reducing emissions.
- Energy efficiency class: A+
- Boiler efficiency: up to 91.8 %
- Meets BImSchV Stage II
This makes the boiler suitable for modern heating systems using renewable fuels.
Compatibility & System Integration
Wood gasification boilers are typically combined with buffer tanks to efficiently store the generated heat and distribute it within the heating system.
Typical combinations:
- Buffer tank
- Return temperature boost
- Radiator heating
- Underfloor heating
- Thermal solar systems
Technical data
| Manufacturer |
ATMOS |
| Model |
DC22GSE |
| Product type |
Wood gasification boiler / solid fuel boiler |
| Nominal heat output |
23 kW |
| Useful heat output |
24.2 kW |
| Efficiency |
91.8% |
| Energy efficiency class |
A+ |
| Fuel |
Firewood |
| Max. log length |
330 mm |
| Filling chamber volume |
80 l |
| Water volume in the boiler |
73 l |
| Max. operating pressure |
2.5 bar |
| Recommended return temperature |
at least 65 °C |
| Flue gas connection |
150 mm |
| Height |
1281 mm |
| Width |
680 mm |
| Depth |
820 mm |
| Weight |
373 kg |
| Connection voltage |
230 V / 50 Hz |
| Sound level |
65 dB |
Scope of delivery
- Wood gasification boiler ATMOS DC22GSE
- Induced draft fan
- Integrated thermostats and safety devices
- Cleaning cover and maintenance components
Accessories & system recommendation
For efficient operation, the manufacturer recommends additional system components.
Matching system components
Installation and safety instructions
The wood gasification boiler must be installed by a qualified heating contractor. Integration into the heating system should be carried out with a buffer tank and return temperature boost.
The minimum return temperature of 65 °C prescribed by the manufacturer must be observed.
FAQ
What is the output of the ATMOS DC22GSE?
The wood gasification boiler has a nominal heat output of 23 kW.
What fuel is used?
The boiler is operated with split logs. Dry wood with a residual moisture content of 12–20% is recommended.
How long can the logs be?
According to the manufacturer, the maximum log length is 330 mm.
What energy efficiency class does the boiler have?
The ATMOS DC22GSE has energy efficiency class A+.
Does the boiler comply with statutory emission requirements?
Yes, the wood gasification boiler meets the requirements of BImSchV Stage II.
Is a buffer tank necessary?
Wood gasification boilers are typically operated with a buffer tank to store heat efficiently and optimize operation.
